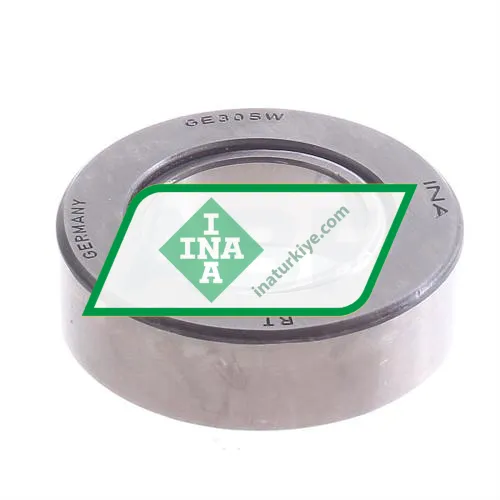

INA GE30-SW-A Rulman

Özellikler

Marka	INA
Ürün No	GE30-SW-A INA
Üretici No	0066515930000
EAN	4012802532555
Kategori	Küresel Düz Yatak

Ağırlık ve Boyutlar

İç (d) MM	30
Dış (D) MM	55
En (B) MM	17
İç (d) Inch	1.1811
Dış (D) Inch	2.1654
En (B) Inch	0.6693
Ağırlık	0.1939 kg

Ürün Özellikleri

Fok	Kapaksız
Contact Material	Steel on PTFE

Data from Schaeffler (medias)

Outside diameter bearing (D) mm	55
Height (T) mm	17
Radial Static Load Rating C0r (N)	323000
Width inner ring (B) mm	16
Radial Dynamic Load Rating Cr (N)	194000
Temel statik yük derecesi, radyal (C 0r)	"323000.0000"
ECLASS number	23-05-01-06
ECLASS2 number	23-05-01-06
Medias description	Angular contact spherical plain bearing, maintenance-free, DIN ISO 12240-2, inner ring curved surface with hard chromium coating, open design

Suffix description

SW	Sliding Contact Surface Hard Chromium/Elgoglide® (Elgoglide®=PTFE (Polyetrafluoroethylene))
A	Schaeffler Internal Code, No Technical Meaning (Can Be Used As Standard)
