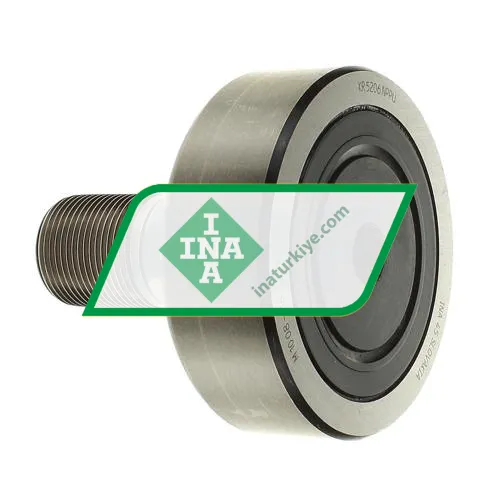

INA KR5206-2RS Rulman
Fiyatı: 2,461.74 ₺
Özellikler
| Marka | INA |
| Ürün No | KR5206-2RS INA |
| Üretici No | 0008769840000 |
| Alternatif Kodu |
KR5206NPPU |
| EAN | 4012802795363 |
| Kategori | Kam Takipçisi |
| İç (d) MM | 24 |
| Dış (D) MM | 72 |
| En (B) MM | 23,8 |
| İç (d) Inch | 0.9449 |
| Dış (D) Inch | 2.8346 |
| En (B) Inch | 0.937 |
| Ağırlık | 0.8 kg |
| Fok | 2RS - İki Tarafta Kauçuk Conta |
| Excenterring | Other Mounting Method |
| Running Surface | Standard |
| Fit diameter of roller stud / stud (d 1) mm | 24 |
| Genişlik (b) mm | 74,1 |
| Basic dynamic load rating, radial (C r w) | 24700 |
| Temel statik yük derecesi, radyal (C 0r) | 18400 |
| Fatigue load limit, radial (C ur w) | 950 |
| Speed on permanent grease lubrication (n D G) | 3500 |
| ECLASS number | 23-05-15-90 |
| ECLASS2 number | 23-05-15-90 |
| Medias description | Stud type track rollers KR52..-2RS, double row, lip seals on both sides |
| 2RS | Rubber Seals At Each Side Of The Bearing, Temperature Range -30u2103/+120u2103 |
