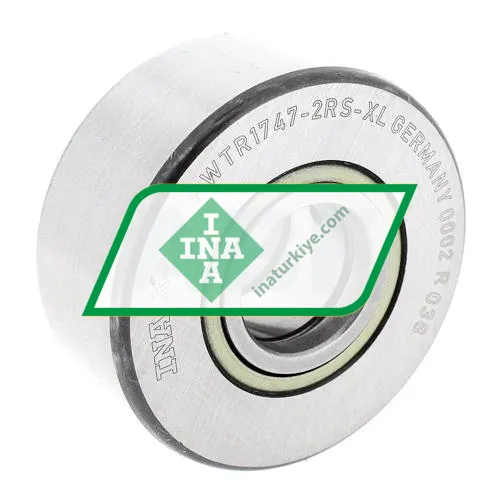

INA PWTR1747-2RS-XL Rulman

Özellikler

Marka	INA
Ürün No	PWTR1747-2RS-XL INA
Üretici No	0638099660000
Alternatif Kodu	PWTR1747-2RS
EAN	4047643142328
Kategori	Destek Silindiri

Ağırlık ve Boyutlar

İç (d) MM	17
Dış (D) MM	47
En (B) MM	20
İç (d) Inch	0.6693
Dış (D) Inch	1.8504
En (B) Inch	0.7874
Ağırlık	0.22 kg

Ürün Özellikleri

Fok	2RS - İki Tarafta Kauçuk Conta
Running Surface	Standard

Data from Schaeffler (medias)

Width inner ring (B) mm	21
Basic dynamic load rating, radial (C r w)	15900
Temel statik yük derecesi, radyal (C 0r)	18400
Speed on permanent grease lubrication (n D G)	5000
ECLASS number	23-05-15-01
ECLASS2 number	23-05-15-01
Medias description	Yoke type track rollers PWTR..-2RS, full complement cylindrical roller set, with axial guidance, lip seals on both sides

Suffix description

2RS	Rubber Seals At Each Side Of The Bearing, Temperature Range -30 ~ 120u2103
XL	X-Life
