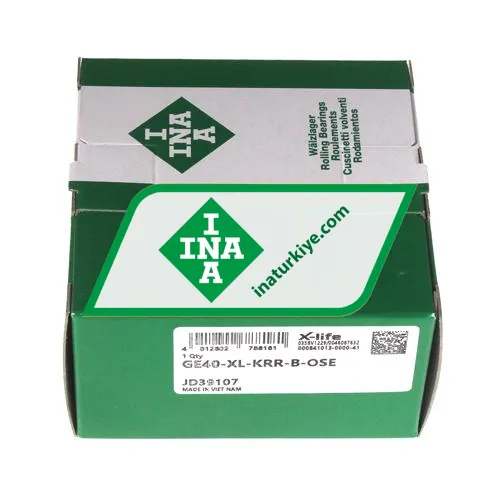

INA GE40-XL-KRR-B-OSE Rulman Resim 3
Ürüne ait görsel ürün fotoğrafı ve resmi.
Fiyatı: 872.59 ₺
Özellikler
Ağırlık ve Boyutlar
| İç (d) MM |
40 |
| Dış (D) MM |
80 |
| En (B) MM |
56,3 |
| İç (d) Inch |
1.5748 |
| Dış (D) Inch |
3.1496 |
| En (B) Inch |
2.2165 |
| Ağırlık |
0.697 kg
|
Ürün Özellikleri
| Fok |
2F - Y-Rulmanlar için Standart Conta |
| Yağlama |
Standart Yağlama |
| Özel Muamele |
No Special Treatment |
Data from Schaeffler (medias)
| Outside diameter (D SP) mm |
80 |
| Genişlik (b) mm |
42,9 |
| Radial Static Load Rating C0r (N) |
19800 |
| Radial Dynamic Load Rating Cr (N) |
34500 |
| Temel statik yük derecesi, radyal (C 0r) |
"19800.0000" |
| ECLASS number |
23-05-08-02 |
| ECLASS2 number |
23-05-08-02 |
| Medias description |
Radial insert ball bearing GE..-XL-KRR-B-OSE |
Suffix description
| XL |
X-Life |
| KRR |
Lip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder) |
| B |
Bearing With Spherical Outer Ring |
| OSE |
Bearing Without Locking Element (Eccentric Locking Collar) |
