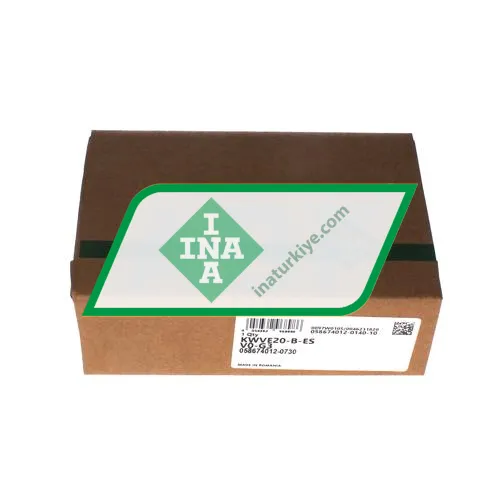

INA KWVE20-B-ES-V0-G3 Rulman Resim 4
Ürüne ait görsel ürün fotoğrafı ve resmi.
Fiyatı: 2,143.53 ₺
Özellikler
Ağırlık ve Boyutlar
| İç (d) MM |
20 |
| Dış (D) MM |
42 |
| En (B) MM |
71,4 |
| İç (d) Inch |
0.7874 |
| Dış (D) Inch |
1.6535 |
| En (B) Inch |
2.811 |
| Ağırlık |
0.315 kg
|
Ürün Özellikleri
Data from Schaeffler (medias)
| Width carriage (B) mm |
42 |
| Overall length carriage (L) mm |
71,4 |
| Dynamic load rating (C) |
13100 |
| Static load rating (C 0) |
27000 |
| Static moment rating about X axis (M 0x) |
332 |
| Static moment rating about Y axis (M 0y) |
240 |
| Static moment rating about Z axis (M 0z) |
240 |
| ECLASS number |
23-30-04-90 |
| ECLASS2 number |
23-30-04-90 |
| Medias description |
Carriages KWVE..-B-ES, carriage for four-row linear ball bearing and guideway assembly, expanded type, narrow design |
Suffix description
| B |
Version |
| ES |
Expanded Design, Narrow Carriage |
| V0 |
Little To No Preload |
| G3 |
Precision Class 3 |
