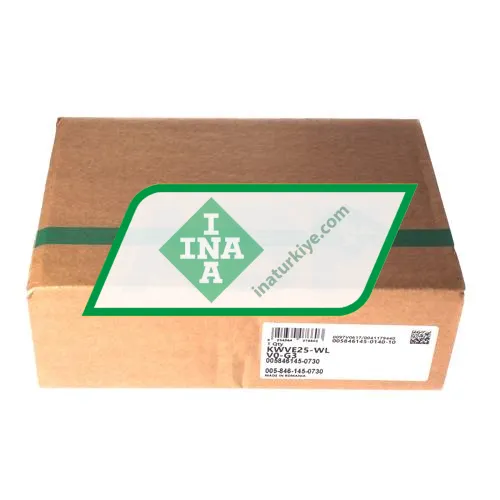

INA KWVE25-WL-V0-G3 Rulman Resim 4
Ürüne ait görsel ürün fotoğrafı ve resmi.
Fiyatı: 4,008.71 ₺
Özellikler
Ağırlık ve Boyutlar
| İç (d) MM |
69 |
| Dış (D) MM |
120 |
| En (B) MM |
107,5 |
| İç (d) Inch |
2.7165 |
| Dış (D) Inch |
4.7244 |
| En (B) Inch |
4.2323 |
| Ağırlık |
1.46 kg
|
Ürün Özellikleri
Data from Schaeffler (medias)
| Width carriage (B) mm |
120 |
| Overall length carriage (L) mm |
107,5 |
| Dynamic load rating (C) |
23400 |
| Static load rating (C 0) |
54000 |
| Static moment rating about X axis (M 0x) |
2225 |
| Static moment rating about Y axis (M 0y) |
825 |
| Static moment rating about Z axis (M 0z) |
825 |
| ECLASS number |
23-30-04-90 |
| ECLASS2 number |
23-30-04-90 |
| Medias description |
Carriages KWVE..-WL, wide, long carriage for linear recirculating ball bearing and guideway assembly |
Suffix description
| WL |
Wide, Long Carriage |
| V0 |
Little To No Preload |
| G3 |
Precision Class 3 |
